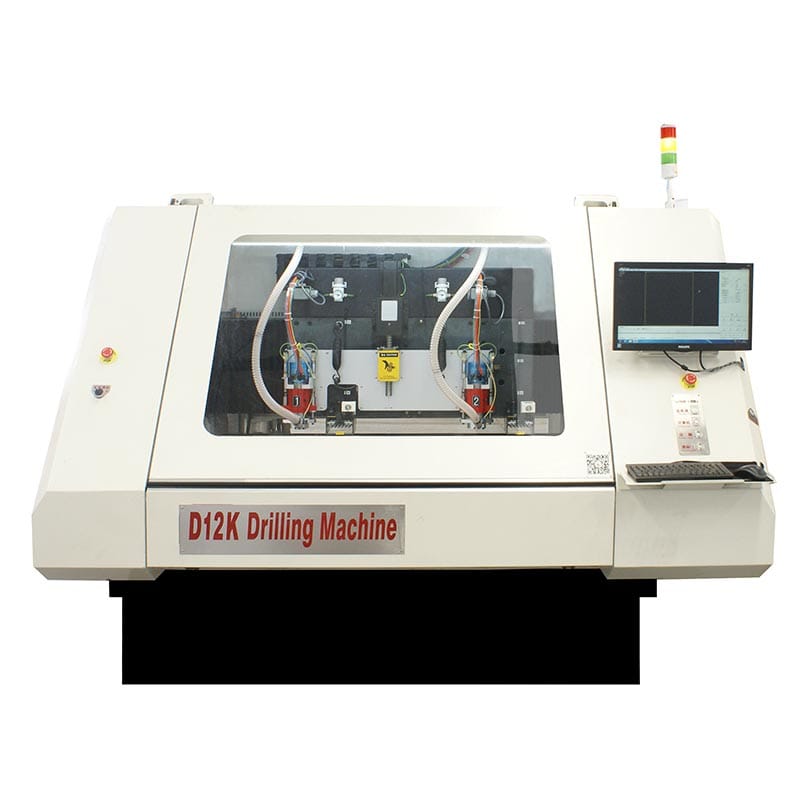

CNC 2-Spindle PCB Drilling Machine R12k

PCB drilling CNC machine using our own designed CNC system and XYZ axis imported AC servo drive system run well when drilling process.

Product Specification:
  • Model:PCB CNC Driller_R12K :
  • No. of Z axis:1 :
  • No. of Spindle:2 :
  • Spindle Speed : 60k rpm / min
  • Processing area of each axis : 680mm×710mm
  • XYZ axial movement stroke : 700mm×805mm×55mm
Inquiry Now
Product Details















PCB drilling cnc machine using our own designed cnc systerm and XYZ axis imported AC servo drive system run well when drilling process.

High speed spindle for 160Krpm and 200Krpm (optional), automaitc circulating water cooling, temperature and flow monitoring can ensure

the safe operation of the principal axis.



Model PCB CNC Router_D12K
No. of Z axis 1
No. of Spindle 2
Spindle Speed 60k rpm / min
Processing area of each axis 680mm×710mm
XYZ axial movement stroke 700mm×805mm×55mm
Number of tools per axis 66 pcs
Drilling diameter φ0.5-φ6.35mm
XY Axial max. movement speed 28m/min
Z Axial max. movement speed 25m/min
System resolution ratio 0.001mm
Positioning Accuracy ±0.02mm
Repeatability Accuracy  ±0.01mm
Drilling precision ±1mil
Power requirements 3P/380V, 50/60Hz
Compressed air requirement  400L/min
Cooling water requirement 18℃-25℃
Environmental temperature 20℃-25℃
Ambient humidity 50%-75%
Noise ≤75dBA
Machine Size 2270mm×1930mm×1600mm (L×W×H)







1. Trade Term: FOB Shenzhen USD by T/T in advance.
2. Discount is allowed against your quantity.
3. OED/OEM is accepted.
4. Delivery will be carried out by Express or your requirement.
5. Lead Time: 2~7 days after payment.





Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
