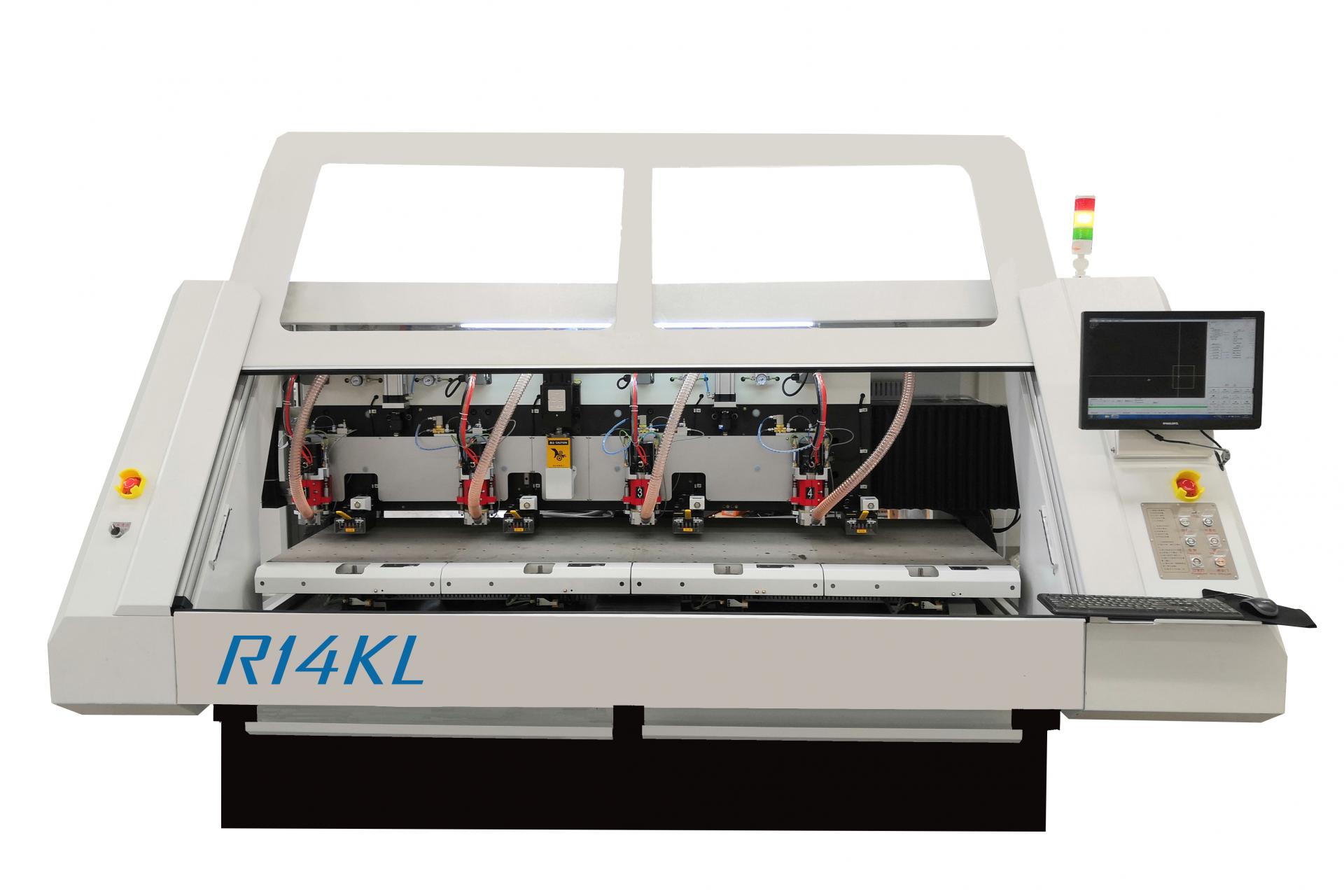

CNC 4 Spindles PCB Routing Machine R14K

4 spindle CNC PCB Router with the new design of auto pinning function.

Product Specification:
  • No. of Spindle:4 :
  • Spindle Speed:60k rpm / min :
  • Processing area of each axis:580mm×730mm :
  • XYZ axial movement stroke:600mm×825mm×55mm :
  • Number of tools per axis:66 pcs :
  • Routing diameter:φ0.6-φ3.175mm :
Inquiry Now
Product Details



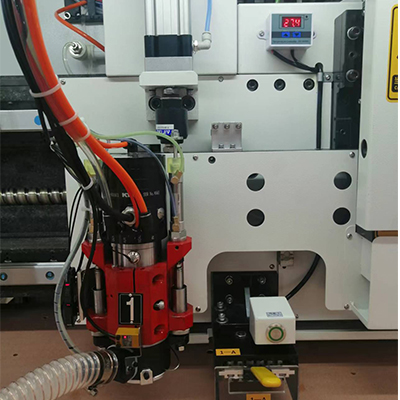

Kexin Electronics could provide the pcb routing machine such as 4 spindles pcb routing machine. Our machines have obtained the national

patent with the new design of auto pinning function. This new achievement will improve the processing efficiency while routing.

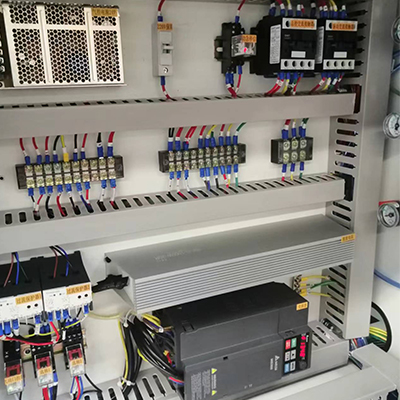

Also, the machine includes the blind routing function for the multilayers boards. And the Tool Broken Detector, Tool length Detector,

aotu tool change, machine tool cleaning button and so on are assembled.

Model PCB CNC Router_R14K
No. of Z axis 1
No. of Spindle 4
Spindle Speed 60k rpm / min
Processing area of each axis 580mm×730mm
XYZ axial movement stroke 600mm×825mm×55mm
Number of tools per axis 66 pcs
Drilling diameter φ0.5-φ6.35mm
Milling diameter φ0.6-φ3.175mm
XY Axial max. movement speed 28m/min
Z Axial max. movement speed 25m/min
System resolution ratio 0.001mm
Positioning Accuracy ±0.01mm
Repeatability Accuracy  ±0.005mm
Routing precision ±0.05mm
Power requirements 3P/380V/50Hz (±5%); 3KW
Compressed air requirement  300L/min
Cooling water requirement 18℃-25℃
Environmental temperature 20℃-25℃
Ambient humidity 50%-75%
Noise ≤75dBA
Machine Size 3.24m×1.93m×1.62m(L×W×H)

Accessories name

Specifications Quantity Brand
X axis- ball screw 25×10-1180 1 HIWIN(Taiwan, China)
Y axis- ball screw 25×10-1330 1 HIWIN(Taiwan, China)
Z axis- ball screw 25×10-320 1 HIWIN(Taiwan, China)
X axis-guide rail and slide block 30×2680 2 HIWIN(Taiwan, China)
Y axis-guide rail and slide block 30×1350 4 HIWIN(Taiwan, China)
Z axis-guide rail and slide block 20×280 / 20×160 4/2 HIWIN(Taiwan, China)
X/Y/Z axis-Servo Motor and Driver 2KW 3 Delta(Taiwan, China)
X/Y/Z axis- Bearing BS2047TN1/P4GB 6 NSK(Japan)
Spindle KL-60C—2E 4 KLKJ(China)
