Depth Control one Spindle PCB Routing Machine DR11

Depth Control 1 Spindle PCB Routing Machine with the new design of auto pinning function.

Product Specification:
  • No. of Spindle:1 :
  • Spindle Speed:60k rpm / min :
  • Processing area of each axis:580mm×730mm :
  • XYZ axial movement stroke:600mm×825mm×55mm :
  • Number of tools per axis:66 pcs :
  • Routing diameter:φ0.6-φ3.175mm :
Inquiry Now
Product Details







Depth Control PCB CNC Router

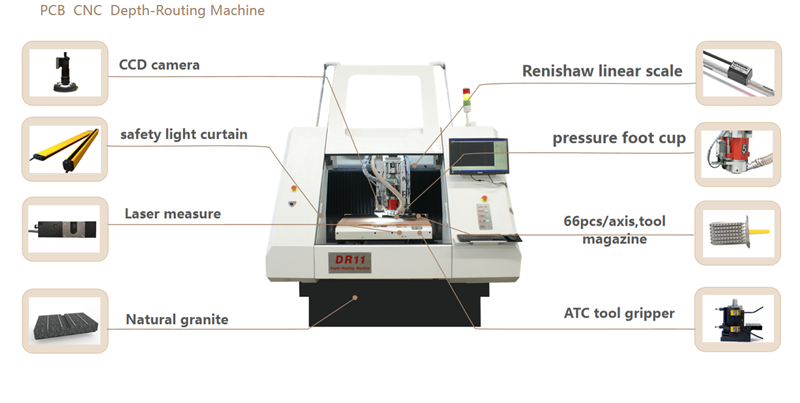

  • X Y Z axis all use high precision Renishaw linear scale
  • Tool broken detection
  • Depth control precision ±0.05mm
  • Z axis independent control
  • CCD cameras
  • Spindle reverse milling function

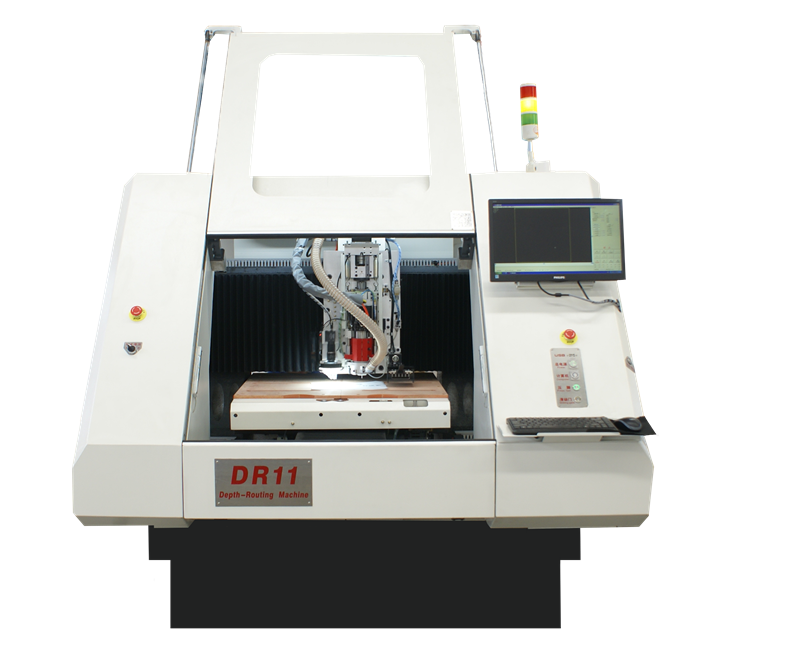

Model Depth Control PCB CNC Router_DR11
No. of Z axis 1
No. of Spindle 1
Spindle Speed 60k rpm / min
Processing area of each axis 580mm×730mm
XYZ axial movement stroke 600mm×825mm×55mm
Number of tools per axis 66 pcs
Drilling diameter φ0.5-φ6.35mm
Milling diameter φ0.6-φ3.175mm
XY Axial max. movement speed 28m/min
Z Axial max. movement speed 25m/min
System resolution ratio 0.001mm
Positioning Accuracy ±0.01mm
Repeatability Accuracy  ±0.005mm
Routing precision ±0.05mm
Depth control precision ±0.05mm
Power requirements 3P/380V/50Hz (±5%); 3KW
Compressed air requirement  300L/min
Cooling water requirement 18℃-25℃
Environmental temperature 20℃-25℃
Ambient humidity 50%-75%
Noise ≤75dBA
Machine Size 1.82m×1.89m×1.60m(L×W×H)
Machine Weight 2500kg
