PCB CNC Driller

4 Spindles PCB CNC Drilling Machine D44

                               X Y axis all use high precision Renishaw linear scale X Y axis  linear motor

Product Specification:
  • No. of Spindle:4 :
  • Spindle Speed:160k rpm / min :
  • Processing area of each axis:580mm×730mm :
  • XYZ axial movement stroke:600mm×825mm×55mm :
  • Number of tools per axis:220 pcs :
  • Routing diameter:φ0.6-φ3.175mm :
Inquiry Now
Product Details

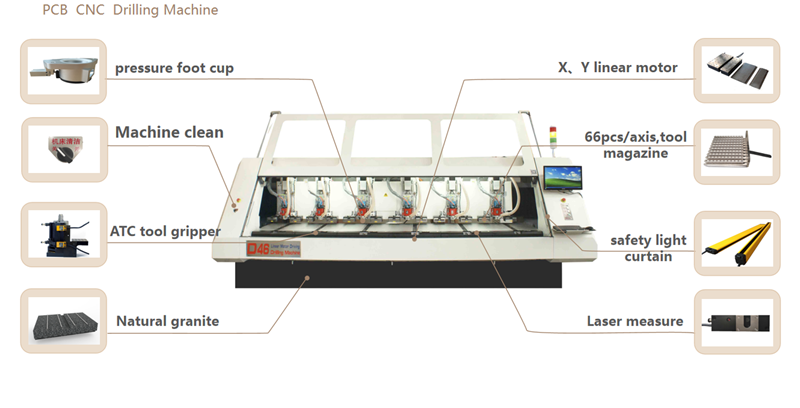

  • X Y axis all use high precision Renishaw linear scale
  • X Y axis  linear motor
  • ATC tool length,tool diameter detection
  • West wind spindle
  • Z axis independent control
Model 4 Spindles PCB CNC Drilling Machine D44
No. of Z axis 4
No. of Spindle 4
Spindle Speed 160k rpm / min
Processing area of each axis 580mm×730mm
XYZ axial movement stroke 600mm×825mm×55mm
Number of tools per axis 220pcs
Drilling diameter φ0.5-φ6.35mm
Milling diameter φ0.6-φ3.175mm
XY Axial max. movement speed 85m/min
Z Axial max. movement speed 30m/min
System resolution ratio 0.001mm
Positioning Accuracy ±0.01mm
Repeatability Accuracy  ±0.005mm
Routing precision ±0.05mm
Drilling precision ±1mil
Power requirements 3P/380V/50Hz (±5%); 3KW
Compressed air requirement  300L/min
Cooling water requirement 18℃-25℃
Environmental temperature 20℃-25℃
Ambient humidity 50%-75%
Noise ≤75dBA
Machine Size 3.27m×2.0m×1.55m(L×W×H)
Machine Weight 7500kg





1. Trade Term: FOB Shenzhen USD by T/T in advance.
2. Discount is allowed against your quantity.
3. OED/OEM is accepted.
4. Delivery will be carried out by Express or your requirement.
5. Lead Time: 2~7 days after payment.





Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
