How to make Printed Circuit Boards(PCBs)?

Published by admin July 16,2021

      The production of circuit boards is a relatively complicated process. It basically requires corresponding equipments for processing and need a lot of effort and cost.

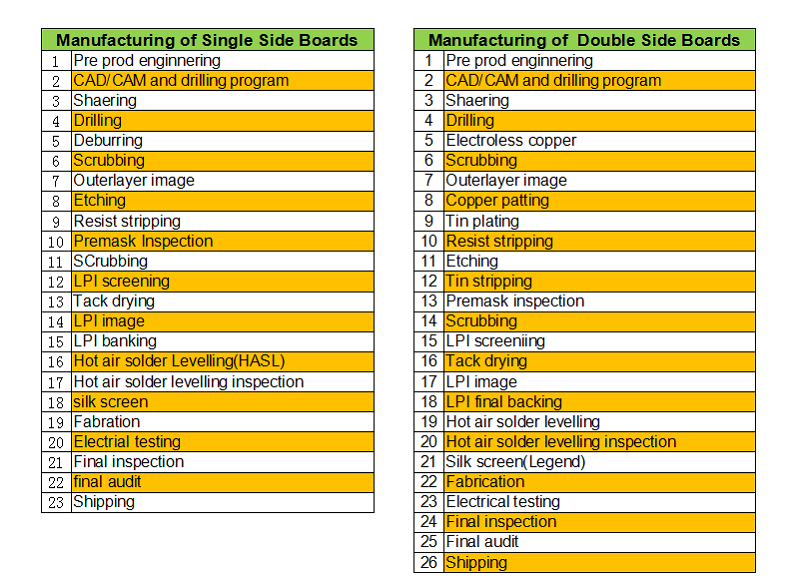

The Manufacturing Process





The Manufacturing Machines



Engineering Photoplotler; Film exposure Machine
Cutting Shearing machine
Lamination Brown Oxide Line; Lamination machine; Scrubbing Machine
Drilling CNC Driller
Grinding panel Scrubbing machine
PTH PTH Line
Pattern Transfer Dry Film Laminator; UV Exposure Machine/LDI
Pattern Plating Electric Plating Line
Dry/Wet film stripping Stripping Line
Etching Etching Line
Solder Mask Silk Screen printing machine;  UV Exposure Machine/LDI
Curing Oven
Surface Treatment OSP Line

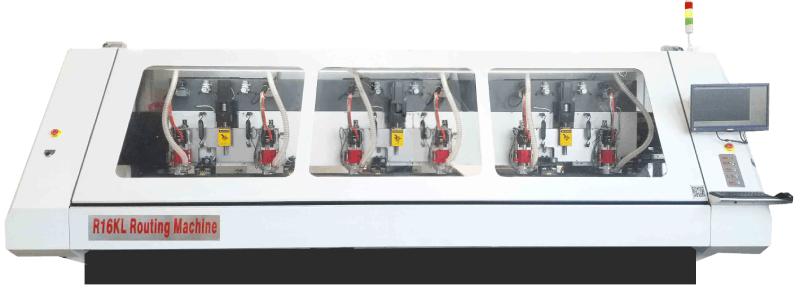

Routing CNC Router
Testing AOI; 3DAOI



       Kexin Electronic Industrial Limited,is a Leading global PCB Spare parts and consumable manufacture ,focusing on PCB Drilling and Routing solutions since 2006.



In order to be the most influential supplier with diversified products in the PCB market, Kexin constantly keeps up with the market and focuses on the advanced technology in PCB industry. We manufacture all kinds of spare parts for CNC driller/router and also trade for the pcb making machines such as the cnc driller/router, exposure machine, screen printing machine, v-cut machine and so on. If you have any inquiry about our products, please feel free to contact us.
